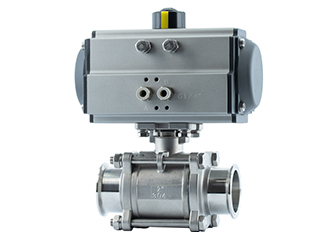

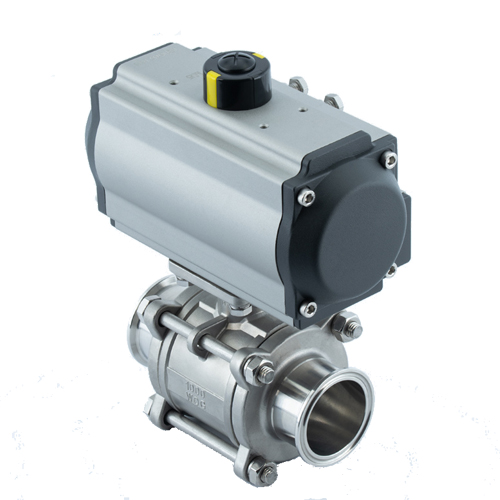

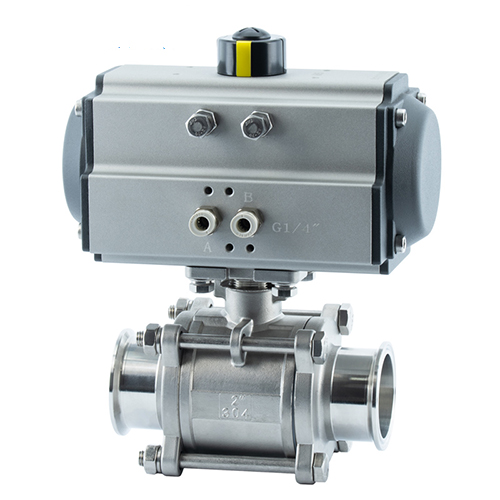

Pneumatic Stainless Steel Three-piece Clamp Ball Valve (Quick Pack)
pneumatic three-piece clamp ball valve
technical parameters
| Nominal diameter DN(mm) | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|
| nominal pressure (MPa) | PN1.6, 2.5, 4.0, 6.4 MPa | |||||||||
| valve body form | three pieces are precision cast valve bodies | |||||||||
| connection format | clamp type | |||||||||
| spool form | "O" type spherical valve core | |||||||||
| sealing packing | PTFE, flexible graphite | |||||||||
| Traffic characteristics | Approximate Fast Open Type | |||||||||
| Action Range | 0 to 90 ° | |||||||||
| Leakage volume Q | according to GB/T4213-92, less than rated KV 0.01% (soft seal: zero leakage) | |||||||||
| basic error | with locator: less than 2% of full stroke | |||||||||
| Dead Zone | with locator: less than 2% of full stroke | |||||||||
| adjustable range | 250:1 | |||||||||
| Configure the execution mechanism | GT, AT, AR, and AW series single-and double-acting pneumatic actuators | |||||||||
| control mode | switch two-position control, 4-20mA analog control | |||||||||
actuator parameters
| Actuator Model | AT series single-double-acting pneumatic actuators |
|---|---|
| air supply pressure | 0.4 ~ 0.7MPa |
| Air source interface | G1/4 & Prime;, G1/8 & Prime;, G3/8 & Prime;, G1/2 & Prime; |
| ambient temperature | -30 ~ +70 ℃ |
| form of action | single-acting actuator: air-off type (B)-valve position opening (FO) when gas is lost; Air opening type (K)-valve position closing (FC) when gas is lost Double-acting actuator: air-off type (B)-valve position retention (FL) when gas is lost; Air-open type (K)-valve position retention (FL) when gas is lost |
| Accessories | positioner, solenoid valve, air filter reducer, hold valve, travel switch, valve position transmitter, handwheel mechanism, etc. |
pneumatic three-piece clamp ball valve has double-acting and single-acting (spring return), rack and pinion transmission, safe and reliable; large-diameter valves adopt series G-type pneumatic actuators fork-type transmission, with reasonable structure and large output torque, There are double-acting and single-acting.
1. Gear type double piston, large output torque and small volume.
2. The cylinder is made of aluminum and gold, with light weight and beautiful appearance.
3. Manual operation mechanism can be installed at the top and bottom.
4. Rack-type connection can adjust the opening angle and rated flow rate.
5. The actuator can be equipped with live signal feedback indication and various accessories to realize automatic operation.
6. IS05211 standard connection provides convenience for product installation and replacement.
7. The joint screws adjusted at both ends can make the standard products have an adjustable range of 4 degrees at 0 degrees and 90 degrees. Ensure synchronization accuracy with the valve.

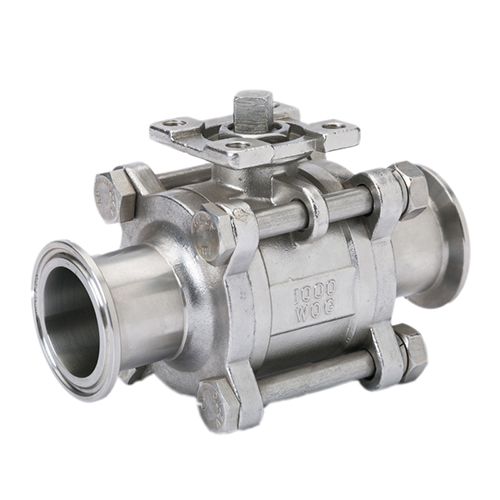

part materials
| Part Name | Material Name | |||
|---|---|---|---|---|
| valve body | WCB | 304(CF8) | 316(CF8M) | 316L(CF3M) |
| sphere | 2 Cr13 + Nitriding | 304 | 316 | 316L |
| stem | 2 Cr13 | 304 | 316 | 316L |
| sealing ring | reinforced polytetrafluoroethylene (PPL), para-polystyrene, stainless steel sealing ring | |||
| applicable media | water, gas, steam, oil, etc. | corrosive media such as nitric acid | acetic acid and other corrosive media | and other corrosive media such as urea |
