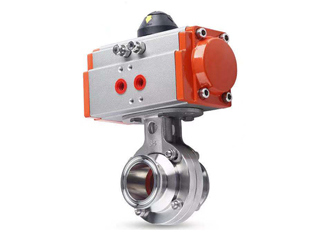

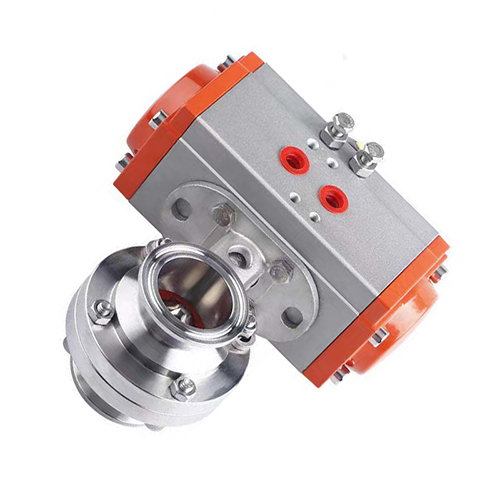

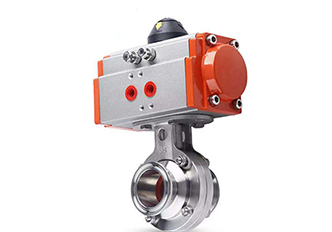

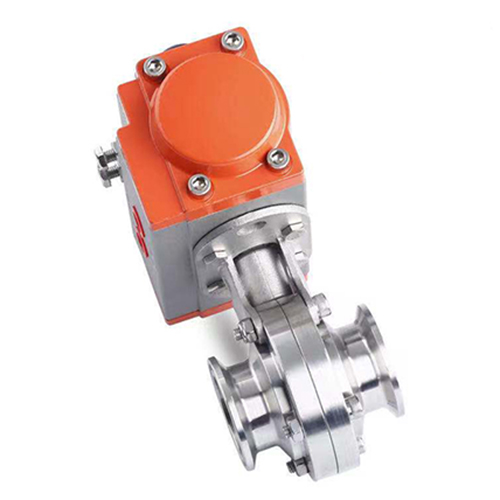

Pneumatic Sanitary Clamp Butterfly Valve (Quick Pack)
is polished, unobstructed, clean and sanitary, and easy to clean without dead corners.
Small opening and closing torque, rapid response, high machining accuracy and long life
Quick disassembly and assembly, not easy to deform, corrosion resistance, zero leakage
Smooth, seamless and self-empting make it meet the special needs of food, pharmaceutical and other fields.
Small opening and closing torque, rapid response, high machining accuracy and long life
Quick disassembly and assembly, not easy to deform, corrosion resistance, zero leakage
Smooth, seamless and self-empting make it meet the special needs of food, pharmaceutical and other fields.
Product Description:
sanitary pneumatic butterfly valve can be operated remotely through a pneumatic head or manually through a handle.actuatorhas three standard models, namely, normally closed (NC), normally open (NO) andair/air (A/A) type. The actuator converts the axial movement of a piston into a 90 ° rotational movement of the valve shaft. When the valve body of the circular flaps in contact with the butterfly valve seal ring, the torque of the actuator increases, closing the valve to select different manual operation of the handle can be the valve mechanically locked in the open, closed, middle or other positions. Realize the adjustment of flow rate
| technical parameters: |  |
|||||||||
| Nominal Tongjing | DN20 to DN250 | |||||||||
| nominal pressure | 10kg | |||||||||
| body material | stainless steel 304 stainless steel 316 | |||||||||
| sealing material | EPDM silicone rubber | |||||||||
| medium temperature | -15°C ~ 80°C | |||||||||
| Connection mode | clamp thread welding | |||||||||
| Action | Double Action Single Action | |||||||||
| attention | customers have special temperatures and materials that can be customized | |||||||||
| Attachment selection: | ||||
| solenoid valve | two-position three-way solenoid valve two-position five-way solenoid valve | |||
| filter pressure reducing valve | Pressure-stabilized filtration of the air source | |||
| stopper | Remote feedback switch model | |||
| manual operation mechanism | can manually turn on and off models | |||
| locator | input analog signal (4-20MA or 0-10V) to adjust the valve opening | |||
| attention | solenoid valve limit switch can be explosion-proof | |||
