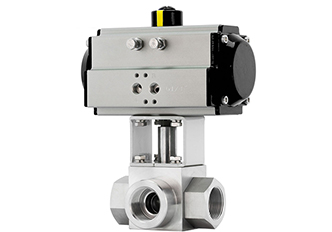

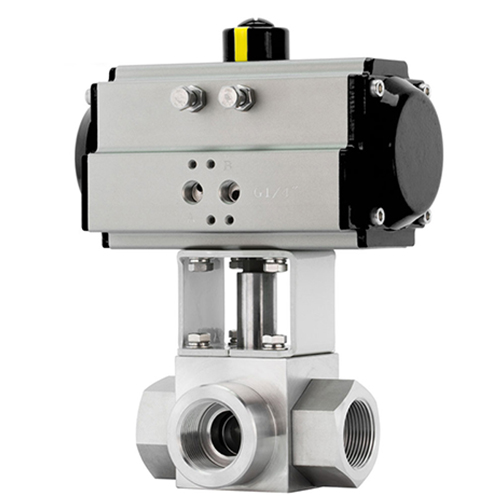

Pneumatic Stainless Steel Three-way High Pressure Ball Valve
simple structure and convenient disassembly
Small opening and closing torque, high reliability and long service life
High pressure ball valve, ISO5211 connection standard, convenient installation
The pressure can reach 300kg.
Circulation mode t-type l-type
Small opening and closing torque, high reliability and long service life
High pressure ball valve, ISO5211 connection standard, convenient installation
The pressure can reach 300kg.
Circulation mode t-type l-type
pneumatic high pressure three-way ball valve
pneumatic high-pressure three-way ball valve is widely used in petroleum, chemical industry, natural gas, power station, metallurgy and other fields. The main media are water, steam, oil, gas, mud, various corrosive media, liquid metal and radioactive fluid and other types of fluid flow. The working pressure of the valve can be from 0.0013MPa to 1000MPa ultra-high pressure, and the working temperature can be from 80 ℃ ultra-low temperature to 350 ℃ high temperature.
| technical parameters: | ||||||||||
| Product name | pneumatic three-way high pressure ball valve | |
||||||||
| Nominal Tongjing | DN15 to DN50 | |||||||||
| nominal pressure | 100kg 200kg 300kg | |||||||||
| body material | stainless steel 304 stainless steel 316 | |||||||||
| sealing material | Jusifo Ethylene PTFE | |||||||||
| medium temperature | -15 c ~ 150 c | |||||||||
| Connection mode | thread | |||||||||
| Action | Double Action Single Action | |||||||||
| thread form | BSPT thread G thread NPT thread | |||||||||
| attention | Customers can customize special requirements | |||||||||
| Attachment selection: | ||||
| solenoid valve | two-position three-way solenoid valve two-position five-way solenoid valve | |||
| filter pressure reducing valve | Pressure-stabilized filtration of the air source | |||
| stopper | Remote feedback switch model | |||
| manual operation mechanism | can manually turn on and off models | |||
| locator | input analog signal (4-20MA or 0-10V) to adjust the valve opening | |||
| attention | solenoid valve limit switch can be explosion-proof | |||
