Product Description:

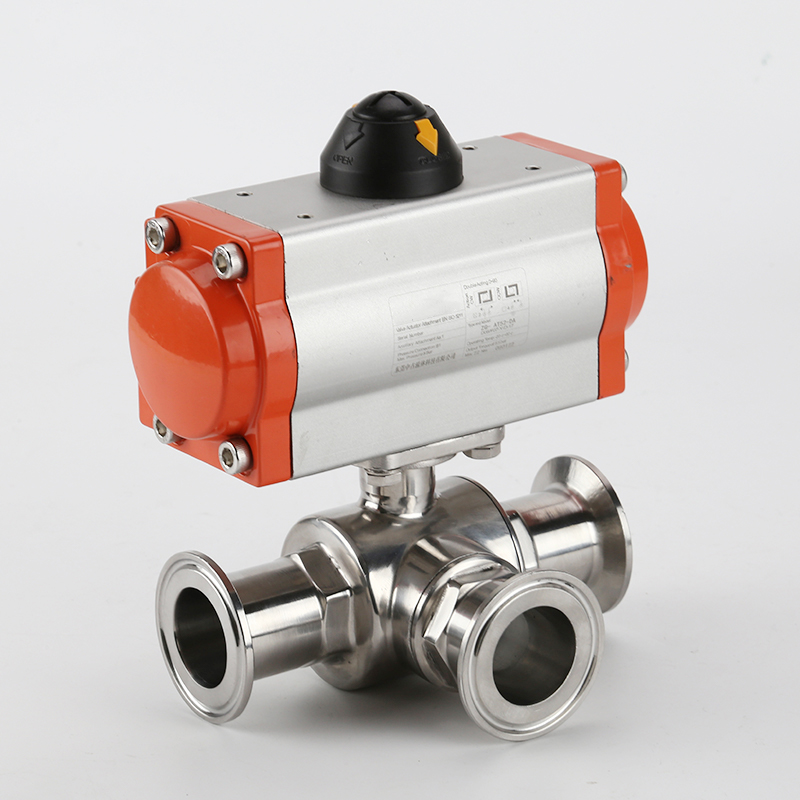

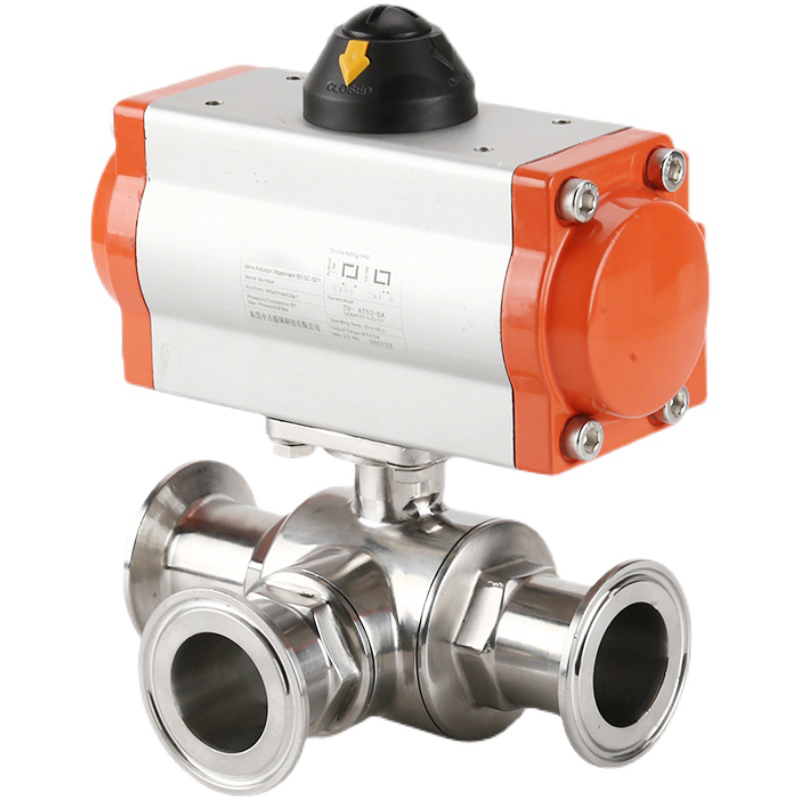

pneumatic three-way sanitary ball valve (three-way quick-fitting ball valve) The valve body is made of food-grade stainless steel 304 and 316 materials. According to the structure, it is divided into three-way T-type and three-way L-type. It can be used for commutation, diversion and confluence of pipeline media in sanitary conditions. The pneumatic three-way sanitary ball valve adopts quick-fitting connection, which can be convenient for disassembly, maintenance and cleaning of the valve cavity. The inside and outside of the valve body are polished and sterilized, and the smooth surface ensures cleanliness without potential pollution. It can be widely used in pharmaceutical, food processing, beverage and other fields to cut off or adjust the medium flow.

technical parameters:
Product name	pneumatic sanitary 3-way ball valve
Nominal Tongjing	DN20 to DN100
nominal pressure	10kg
body material	stainless steel 304 stainless steel 316
sealing material	Jusifo Ethylene PTFE
medium temperature	-15 c ~ 150 c
Connection mode	clamp
circulation mode	L-type T-type
Action	Double Action Single Action
attention	customers have special temperatures and materials that can be customized
Attachment selection:
solenoid valve	two-position three-way solenoid valve two-position five-way solenoid valve
filter pressure reducing valve	Pressure-stabilized filtration of the air source
stopper	Remote feedback switch model
manual operation mechanism	can manually turn on and off models
locator	input analog signal (4-20MA or 0-10V) to adjust the valve opening
attention	solenoid valve limit switch can be explosion-proof
