Product Introduction

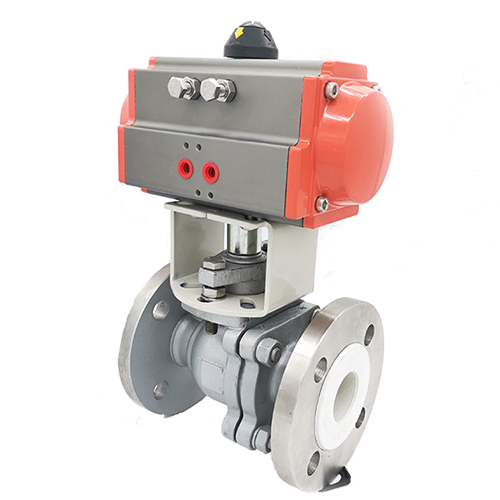

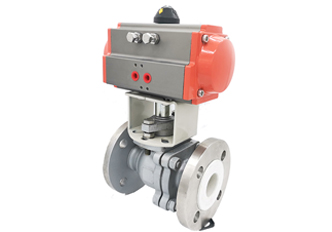

pneumatic fluorine-lined ball valve is composed of pneumatic actuators and fluorine-lined ball valves. The valve is lined with fluoroplastics, and is equipped with a new type of rod ball structure, coupled with its unique elastic lip sealing seat structure. It has the advantages of ordinary ball valves, and can have high sealing performance and low operating torque within the range of large pressure difference and large temperature difference. The pneumatic fluorine-lined ball valve can be used for switching or adjustment. The corrosion-resistant pneumatic ball valve is suitable for the transportation of liquids and gases in various industrial pipelines (including steam), and can be used in various acids, alkalis, salts and other strong corrosive media. Work well. The full-diameter pneumatic fluorine-lined ball valve provides maximum flow and can be used for line sweeping to clean or isolate the pipeline.

technical parameters:
Product name	pneumatic 2-way fluorine-lined flange ball valve
Nominal Tongjing	DN15 to DN200
nominal pressure	16kg
body material	stainless steel 304 stainless steel 316
fluorine-lined material	Jusifo Ethylene
sealing material	Jusifo Ethylene PTFE
medium temperature	-15 c ~ 150 c
Connection mode	flange
Action	Double Action Single Action
flange form	national standard flange, Japanese standard flange, American standard flange
attention	Customers can customize special requirements

·
