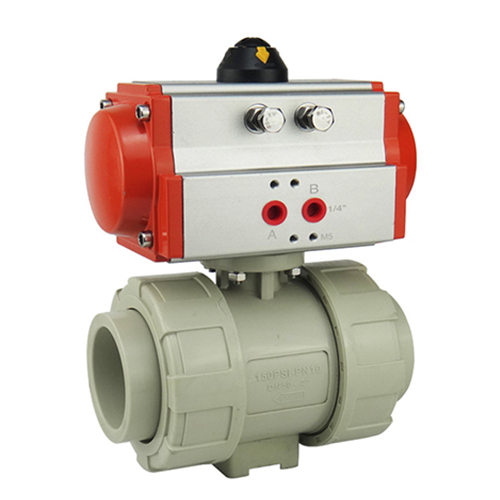

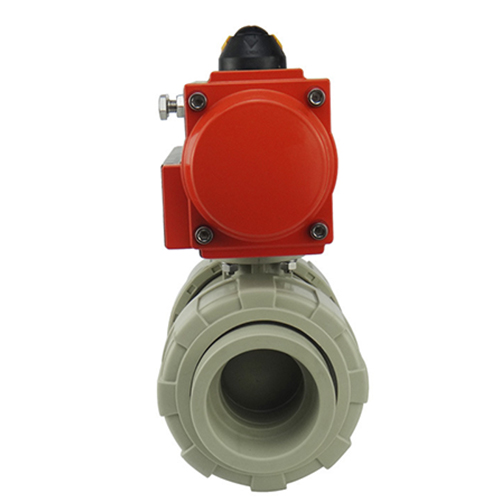

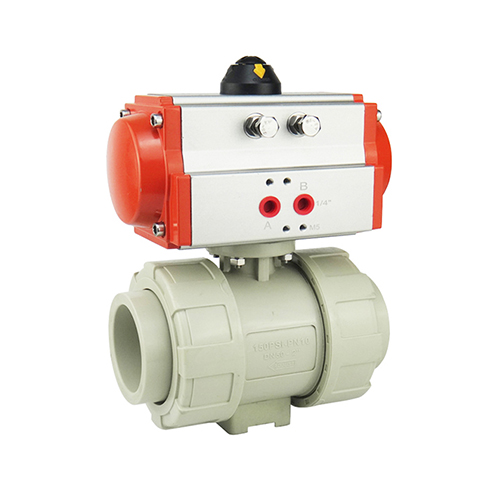

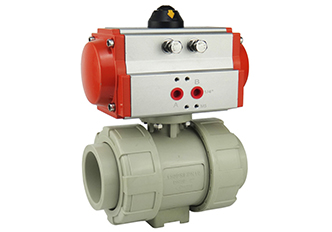

Pneumatic PPH Double Ball Valve
compact and beautiful appearance
Pneumatic PVC ball valve body is light in weight and easy to install.
Strong corrosion resistance and wide application range
The material is hygienic, non-toxic, wear-resistant, easy to remove, and easy to maintain.
Pneumatic PVC ball valve body is light in weight and easy to install.
Strong corrosion resistance and wide application range
The material is hygienic, non-toxic, wear-resistant, easy to remove, and easy to maintain.
Product Description:
pneumatic plastic ball valve, double connection, floating ball valve, sealed PTFE, pneumatic switch, light weight and strong corrosion resistance.
It is used in many fields, such as general pure water and raw drinking water pipeline systems, drainage and sewage pipeline systems, brine and seawater pipeline systems, acid-base and chemical solution systems and other industries.
| technical parameters: | |||||||||||
| Product name | pneumatic UPVC 2-way ball valve |
|
|||||||||
| Nominal Tongjing | DN15 to DN100 | ||||||||||
| nominal pressure | 10kg | ||||||||||
| body material | UPVC PPH | ||||||||||
| sealing material | UPVC | ||||||||||
| medium temperature | -5°C ~ 60°C | ||||||||||
| Connection mode | double internal thread | ||||||||||
| Action | Double Action Single Action | ||||||||||
| attention | Customers can customize special requirements | ||||||||||
| Attachment selection: | ||||||
| solenoid valve | two-position three-way solenoid valve two-position five-way solenoid valve | |||||
| filter pressure reducing valve | Pressure-stabilized filtration of the air source | |||||
| stopper | Remote feedback switch model | |||||
| manual operation mechanism | can manually turn on and off models | |||||
| locator | input analog signal (4-20MA or 0-10V) to adjust the valve opening | |||||
| attention | solenoid valve limit switch can be explosion-proof | |||||
