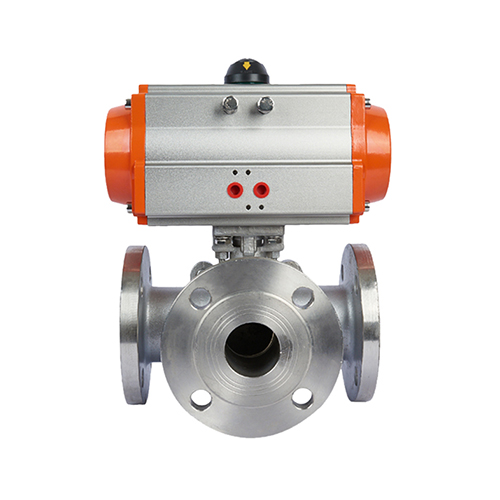

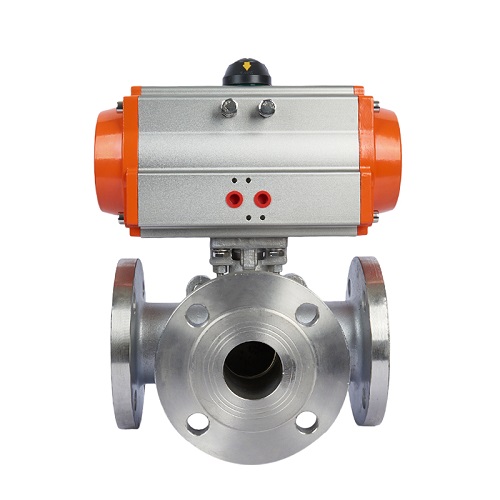

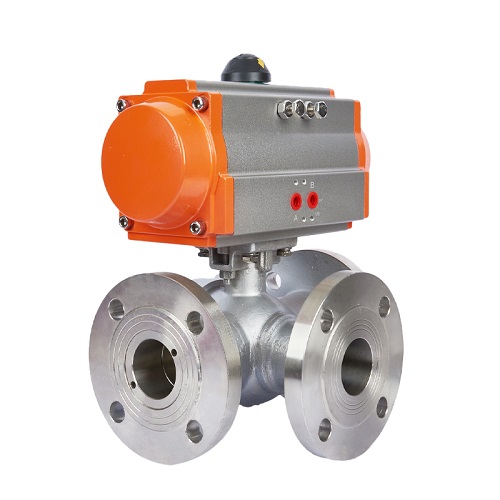

Pneumatic Three-way Stainless Steel Flange Ball Valve
Fireproof and anti-static structure, silica sol precision casting, safe and reliable
High platform design in line with ISO5211 standards and long service life
Two-way sealing, two-way pressure bearing, automatic compensation, self-cleaning function
The valve core adopts L-type and T-type to meet the use requirements under different working conditions.
Product Description:

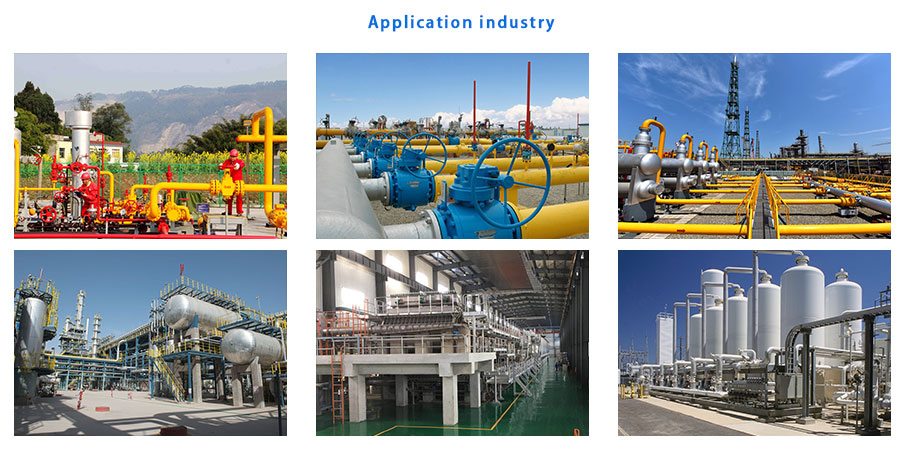

Product Description: Pneumatic stainless steel three-way ball valve is divided into L-type and T-type. The medium circulation direction is reversing, diverting and confluence. The L-type three-way ball valve is suitable for switching the flow direction of the medium, and can connect the two channels perpendicular to each other: the T-type three-way ball valve is suitable for the diversion, confluence or flow direction switching of the medium, and the T-type hole can make the three channels communicate with each other Or make two of the channels communicate. It is generally suitable for switching the flow direction of the medium in the pipeline systems of water supply, petrochemical, metallurgy, mining, textile, energy, papermaking, food, steel, etc. and the diversion or mixing of the medium.
| technical parameters: | ||||||||||
| Product name | pneumatic 3-way ball valve | |
||||||||
| Nominal Tongjing | DN15 to DN100 | |||||||||
| nominal pressure | 16kg 25kg | |||||||||
| body material | stainless steel 304 stainless steel 316 | |||||||||
| sealing material | Polyethylene PTFE para-polystyrene (PPL) | |||||||||
| medium temperature | -15 c ~ 150 c -15 c ~ 250 c | |||||||||
| Connection mode | flange | |||||||||
| Action | Double Action Single Action | |||||||||
| circulation mode | T-type L-type | |||||||||
| flange form | national standard flange, Japanese standard flange, American standard flange | |||||||||
| attention | Customers can customize special requirements | |||||||||
| Attachment selection: | |||||||
| solenoid valve | two-position three-way solenoid valve two-position five-way solenoid valve | ||||||
| filter pressure reducing valve | Pressure-stabilized filtration of the air source | ||||||
| stopper | Remote feedback switch model | ||||||
| manual operation mechanism | can manually turn on and off models | ||||||
| locator | input analog signal (4-20MA or 0-10V) to adjust the valve opening | ||||||
| attention | solenoid valve limit switch can be explosion-proof | ||||||
