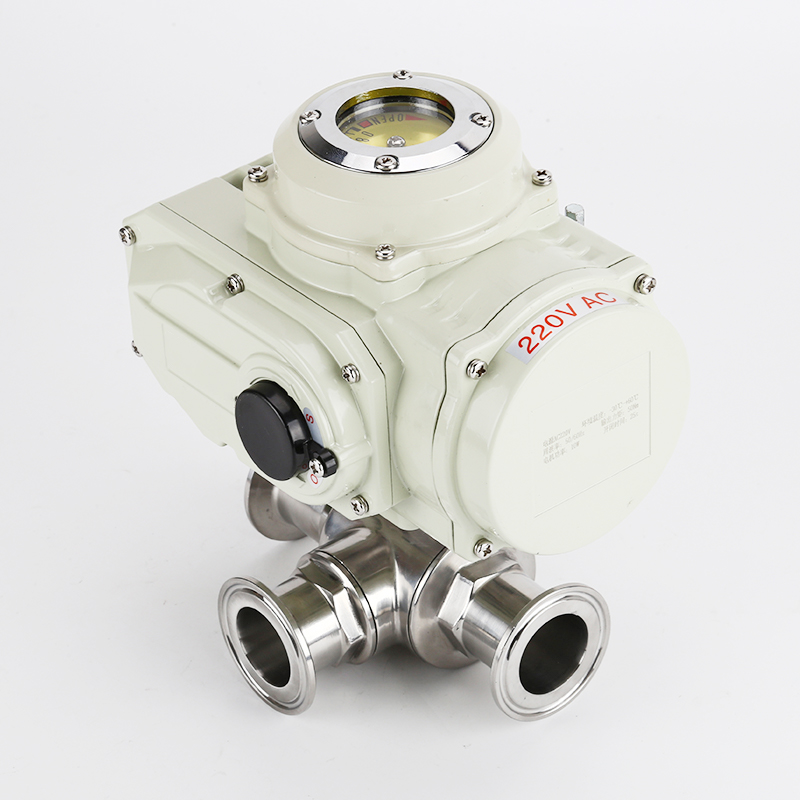

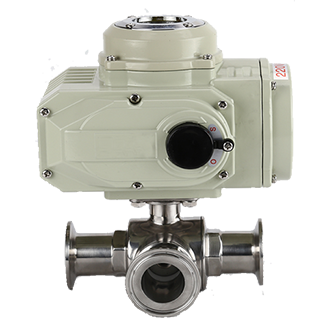

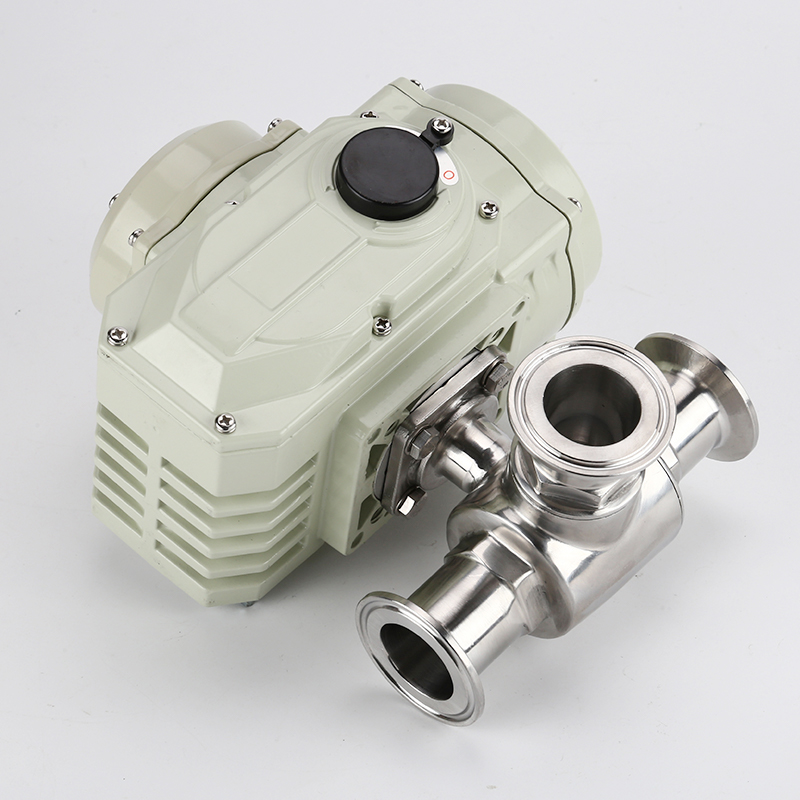

Electric Sanitary Three-way Ball Valve
is polished, unobstructed, clean and sanitary, and easy to clean without dead corners.
Small opening and closing torque, rapid response, high machining accuracy and long life
Quick disassembly and assembly, not easy to deform, corrosion resistance, zero leakage
Smooth, seamless and self-empting make it meet the special needs of food, pharmaceutical and other fields.
Small opening and closing torque, rapid response, high machining accuracy and long life
Quick disassembly and assembly, not easy to deform, corrosion resistance, zero leakage
Smooth, seamless and self-empting make it meet the special needs of food, pharmaceutical and other fields.
Product Description:
electric three-way sanitary ball valve can be applied to food processing, pharmaceutical and other industries with high hygiene requirements, and can realize the function of dividing and combining media and changing the flow direction of media. It meets the sanitary conditions of food processing, medicine, cosmetics, clean steam, alcohol, beverage, biochemical industry, etc.
| technical parameters: | |||||||||||
| Product name | electric sanitary 3-way ball valve |  |
|||||||||
| Nominal Tongjing | DN20 to DN100 | ||||||||||
| nominal pressure | 10kg | ||||||||||
| body material | stainless steel 304 stainless steel 316 | ||||||||||
| sealing material | Jusifo Ethylene PTFE | ||||||||||
| medium temperature | -15 c ~ 150 c | ||||||||||
| Connection mode | clamp | ||||||||||
| circulation mode | L-type T-type | ||||||||||
| Action | switch type adjustable type optional explosion-proof | ||||||||||
| attention | customers have special temperatures and materials that can be customized | ||||||||||
| electric actuator: | |||||||
| switch type | feedback signal: passive contact signal \4-20mA \resistance signal | ||||||
| adjustment type | input signal 4-20mA\0-10V\1-5V; feedback signal: 4-20mA\0-10V\1-5V | ||||||
| voltage | AC220V\380V\110V\24V, DC12V\24V, etc. Special voltages can be customized | ||||||
| explosion-proof rating | optional explosion-proof EXdIIBT4 | ||||||
.
