Product Introduction

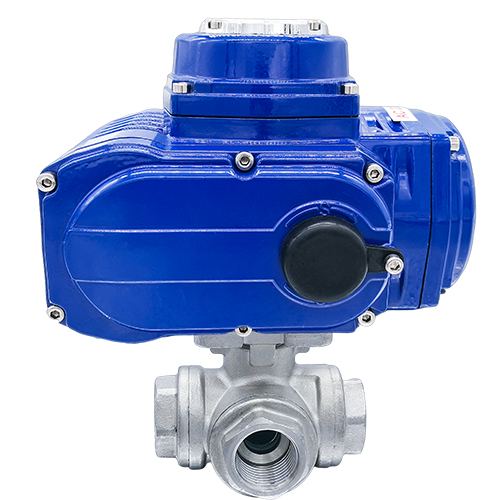

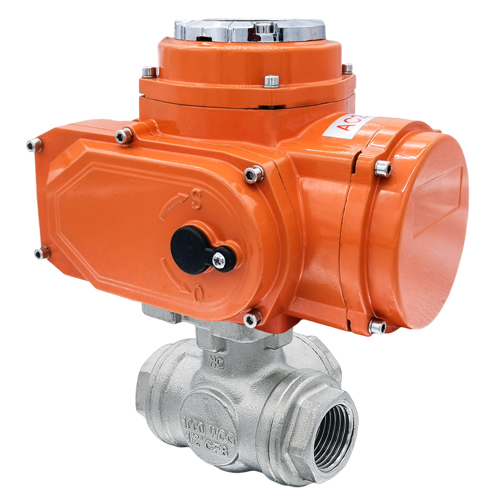

electric three-way ball valve consists of a 1/4-stroke electric actuator and a three-way ball valve. It is a rotary electric cut-off regulating valve. The electric three-way ball valve has two structural forms: L-type and T-type. It controls the rotation angle of the valve core, changes the connection state of the valve core and the nozzle, and can realize different combination control of the three branch pipes. The double-seat sealed electric three-way ball valve has the characteristics of compact structure, beautiful appearance and good sealing performance. It can switch the flow direction of the medium in the pipeline. It can also connect or close two channels perpendicular to each other. It has the advantages of tight closure, compact structure, light weight, and convenient maintenance. The three-way ball valve has a large flow rate and is suitable for occasions with strict sealing requirements. It can control gas, liquid, steam, and is more suitable for controlling high viscosity, fibrous particle fluids.

technical parameters:
Product name	electric 3-way ball valve
Nominal Tongjing	DN08 to DN100
nominal pressure	16kg 25kg 40kg
body material	stainless steel 304 stainless steel 316
sealing material	Polyethylene PTFE para-polystyrene (PPL)
medium temperature	-15 c ~ 150 c -15 c ~ 250 c
Connection mode	Clamp Internal Thread Welding
Action	switch type adjustment type
circulation mode	T-type L-type
thread form	BSPT thread G thread NPT thread
attention	Customers can customize special requirements
