Product Description:

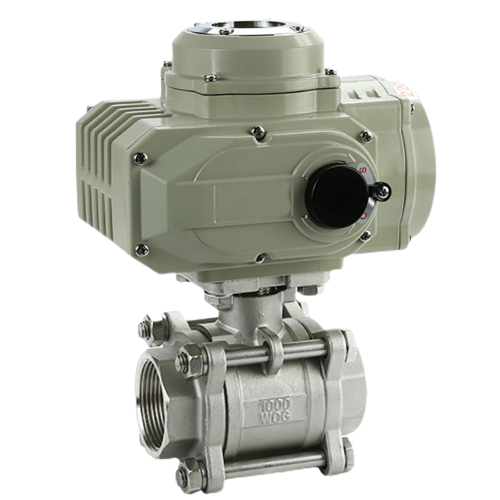

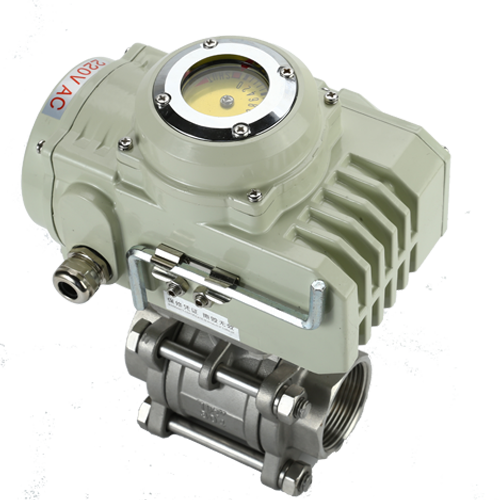

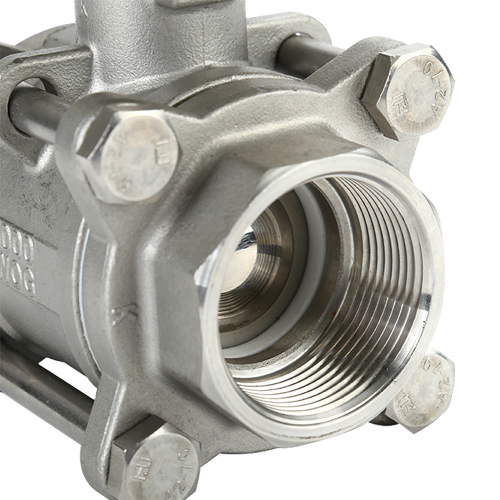

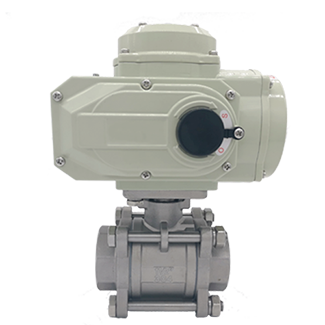

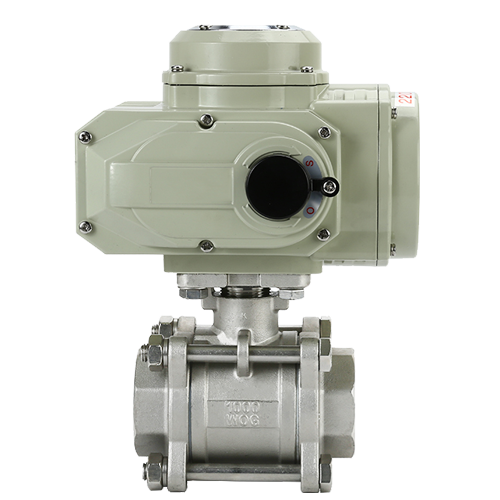

electric three-piece stainless steel ball valve (electric internal thread ball valve) is assembled from left and right valve housings and intermediate valve bodies. Four longer bolts pass through the three-section valve housing and tightly clamp the middle valve body from both ends. The biggest advantage of the electric three-piece ball valve is that it is particularly easy to disassemble. When the valve fails or requires maintenance, you can directly remove the four bolts and take out the middle part of the valve body without removing the thread of the pipe. It not only reduces the probability of failure, but also improves work efficiency. It is especially suitable for working conditions with small mechanical volume and narrow space.

technical parameters:
Product name	pneumatic three-piece ball valve
Nominal Tongjing	DN08 to DN100
nominal pressure	16kg 25kg 40kg
body material	stainless steel 304 stainless steel 316
sealing material	Polyethylene PTFE para-polystyrene (PPL)
medium temperature	-15 c ~ 150 c -15 c ~ 250 c
Connection mode	Clamp Internal Thread Welding
Action	switch type adjustment type optional explosion-proof type
thread form	BSPT thread G thread NPT thread
attention	Customers can customize special requirements

.
