Product Description:

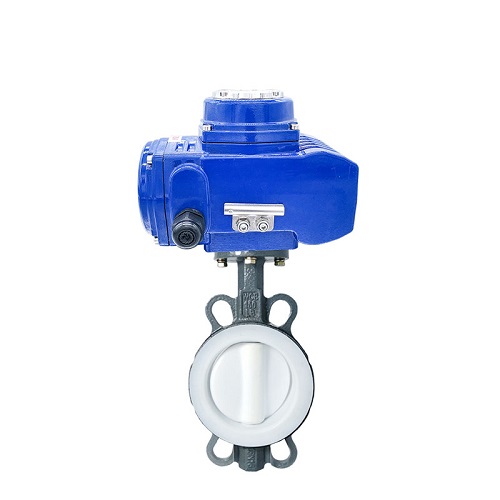

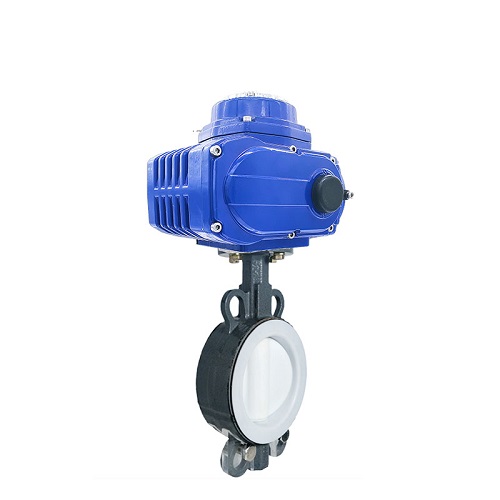

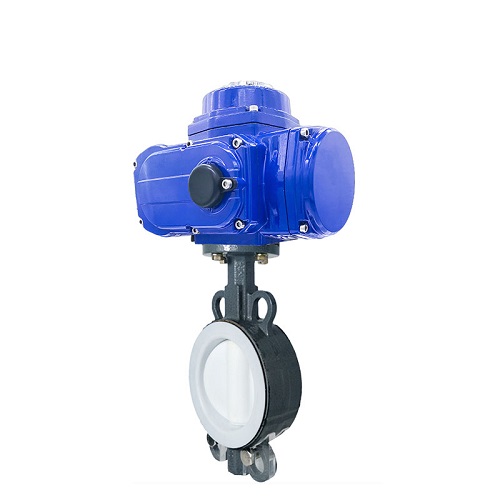

Electric Fluorine-lined Butterfly Valveelectric fluorine-lined butterfly valve consists of electric actuator and flange or disc type fluorine-lined butterfly valve. The valve seat and sealing surface of the butterfly valve are lined with fluoroplastic, which has the advantages of zero leakage, long life, super corrosion resistance and wear resistance. The electric fluorine-lined butterfly valve selects different liner valve bodies according to different working conditions. They are divided into full fluorine-lined butterfly valves and semi-fluorine-lined butterfly valves. Control methods include shutdown and intelligent adjustment. Electric fluorine-lined butterfly valve has tight sealing performance, not only has the mechanical strength of ordinary butterfly valve, but also can play the chemical characteristics of PTFE corrosion resistance and acid and alkali resistance. Under normal working conditions, it is better than stainless steel butterfly valve. It has a high cost performance.

technical parameters:
Product name	electric fluorine-lined wafer butterfly valve
Nominal Tongjing	DN50 to DN500
nominal pressure	1.0-1.6Mpa
body material	ductile iron carbon steel stainless steel
sealing material	Jusifo Ethylene PTFE
lining material	polyperfluoroethylene propylene (F46)
medium temperature	-20 c ~ 150 c
Connection mode	wafer type
Action	switch type regulating type explosion-proof type
attention	Customers can customize special requirements
