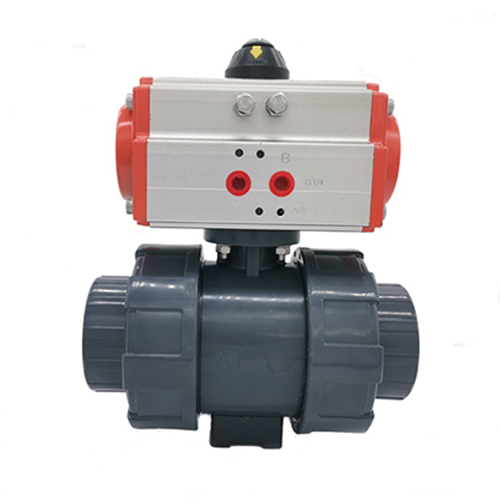

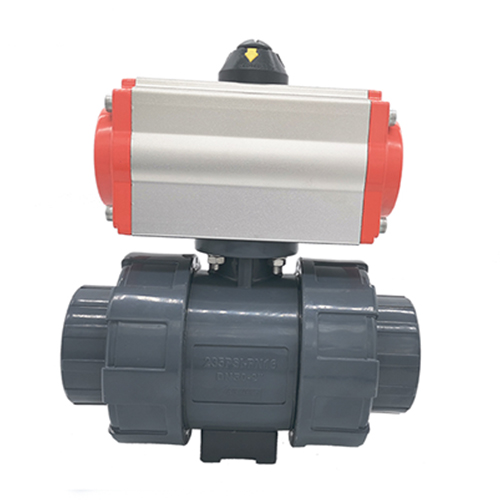

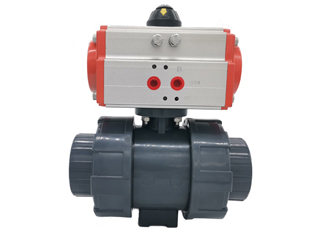

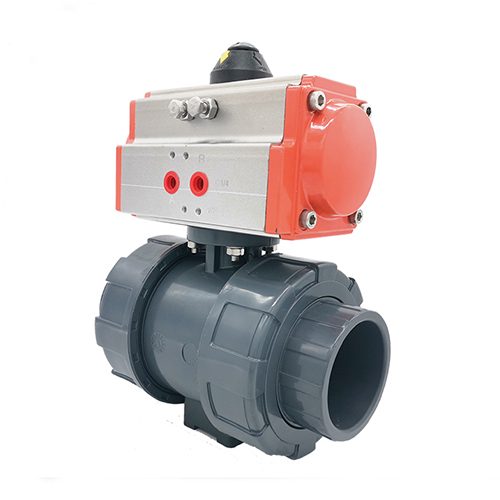

Pneumatic UPVC Double Ball Valve
has strong corrosion resistance, is not easy to age, is light in weight and is resistant to ultraviolet rays.
The pipe wall is smooth, the friction is small, the circulation is smooth, clean and sanitary.
Small torque, rapid response, stable work, long life
All-plastic structure, convenient disassembly and assembly, economical and practical, zero leakage
The pipe wall is smooth, the friction is small, the circulation is smooth, clean and sanitary.
Small torque, rapid response, stable work, long life
All-plastic structure, convenient disassembly and assembly, economical and practical, zero leakage
Product Description:
PVC/polypropylene pneumatic ball valve is suitable for interception of corrosive media during transportation. Light weight and strong corrosion resistance, UPVC pneumatic ball valves are used in many fields, such as general pure water and raw drinking water piping systems, drainage and sewage piping systems, brine and seawater piping systems, acid-base and chemical solution systems
| technical parameters: | |||||||||||
| Product name | pneumatic UPVC 2-way ball valve | |
|||||||||
| Nominal Tongjing | DN15 to DN100 | ||||||||||
| nominal pressure | 10kg | ||||||||||
| body material | UPVC PPH | ||||||||||
| sealing material | UPVC | ||||||||||
| medium temperature | -5°C ~ 60°C | ||||||||||
| Connection mode | double internal thread | ||||||||||
| Action | Double Action Single Action | ||||||||||
| attention | Customers can customize special requirements | ||||||||||
| Attachment selection: | |||||||
| solenoid valve | two-position three-way solenoid valve two-position five-way solenoid valve | ||||||
| filter pressure reducing valve | Pressure-stabilized filtration of the air source | ||||||
| stopper | Remote feedback switch model | ||||||
| manual operation mechanism | can manually turn on and off models | ||||||
| locator | input analog signal (4-20MA or 0-10V) to adjust the valve opening | ||||||
| attention | solenoid valve limit switch can be explosion-proof | ||||||
