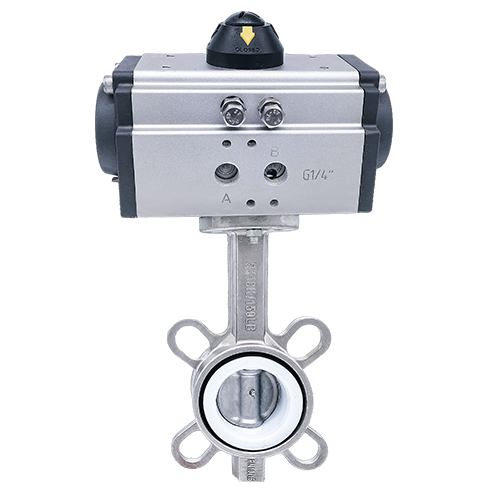

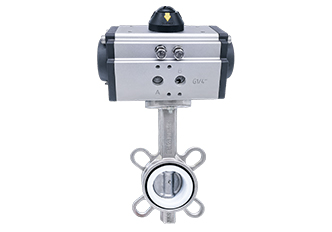

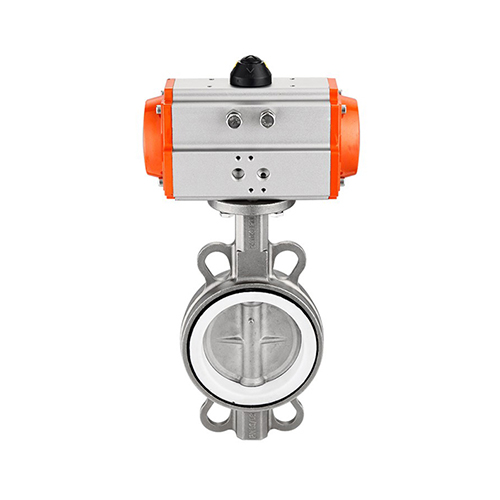

Pneumatic Stainless Steel Wafer Butterfly Valve PTFE Seat (GB)
Product Description:
pneumatic stainless steel wafer butterfly valve is a non-closed butterfly valve, which is widely used in the production process of building materials, metallurgy, mining, electric power, etc. to connect pipelines with medium temperature of 180 ℃ and nominal pressure of 0.1Mpa to open and close or adjust the amount of medium.
| technical parameters: | ||||||||||
| Product name | pneumatic wafer butterfly valve (other sizes can be customized) |  |
||||||||
| Nominal Tongjing | DN40 to DN500 | |||||||||
| nominal pressure | 1.0-1.6Mpa | |||||||||
| body material | ductile iron carbon steel stainless steel | |||||||||
| sealing material | Jusifo Ethylene PTFE EPDM EPDM | |||||||||
| medium temperature | -15 c ~ 80 c -15 c ~ 150 c | |||||||||
| Connection mode | wafer type | |||||||||
| Action | Double Action Single Action | |||||||||
| attention | Customers can customize special requirements | |||||||||
| Attachment selection: | ||||||
| solenoid valve | two-position three-way solenoid valve two-position five-way solenoid valve | |||||
| filter pressure reducing valve | Pressure-stabilized filtration of the air source | |||||
| stopper | Remote feedback switch model | |||||
| manual operation mechanism | can manually turn on and off models | |||||
| locator | input analog signal (4-20MA or 0-10V) to adjust the valve opening | |||||
| attention | solenoid valve limit switch can be explosion-proof | |||||
