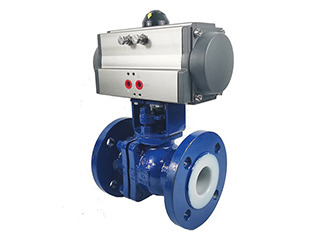

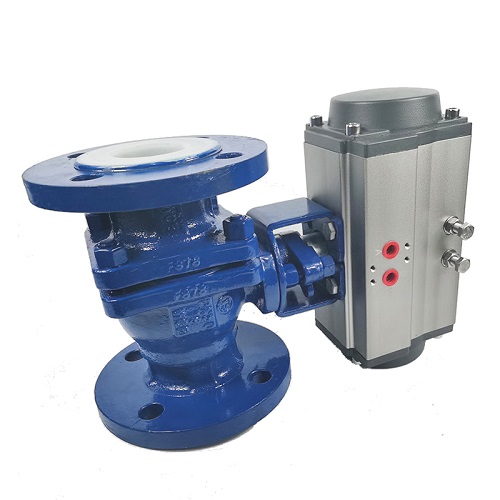

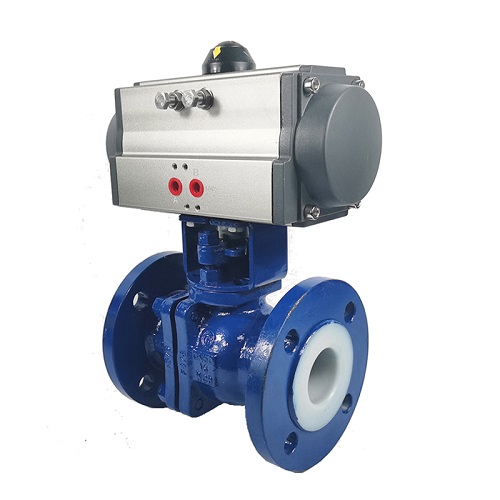

Pneumatic PTFE Seat Flange Ball Valve
high-performance structural ceramics, self-cleaning, super wear resistance, strong corrosion
Strong tensile strength, compressive strength, good toughness, high hardness and long service life
Good circulation, reliable sealing, long service life and wide use environment
Suitable for boiler steam, lime slurry, granular seawater transportation, high hardness particles,
Contains soft particles and corrosive media, powder, flue gas desulfurization, ash discharge, slag discharge, water treatment
Strong tensile strength, compressive strength, good toughness, high hardness and long service life
Good circulation, reliable sealing, long service life and wide use environment
Suitable for boiler steam, lime slurry, granular seawater transportation, high hardness particles,
Contains soft particles and corrosive media, powder, flue gas desulfurization, ash discharge, slag discharge, water treatment
Product Description:

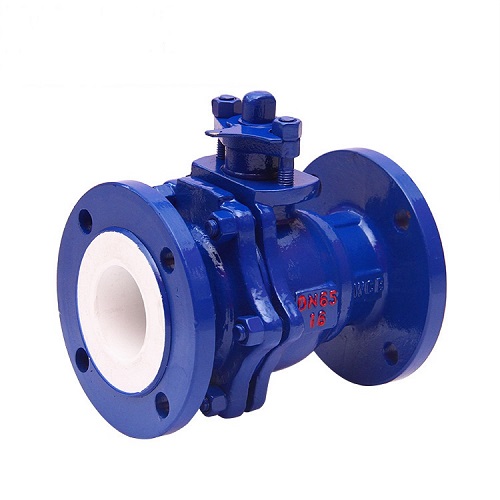

PTFE flanged ball valve with seat is widely used in petrochemical, gas equipment, nuclear industry, power equipment, environmental protection water treatment, HVAC, iron and steel metallurgy, textile, printing and dyeing, papermaking and other industries. It is also the construction of national defense and scientific and technological construction. The product selection is the construction of building materials, construction machinery and mechanical equipment.
| technical parameters: | ||||||||||||
| Product name | pneumatic 2-way fluorine-lined flange ball valve |  |
||||||||||
| Nominal Tongjing | DN15 to DN200 | |||||||||||
| nominal pressure | 16kg | |||||||||||
| body material | cast iron cast steel stainless steel 304 stainless steel 316 | |||||||||||
| fluorine-lined material | Jusifo Ethylene | |||||||||||
| sealing material | Jusifo Ethylene PTFE | |||||||||||
| medium temperature | -15 c ~ 150 c | |||||||||||
| Connection mode | flange | |||||||||||
| Action | Double Action Single Action | |||||||||||
| flange form | national standard flange, Japanese standard flange, American standard flange | |||||||||||
| attention | Customers can customize special requirements | |||||||||||
| Attachment selection: | ||||||
| solenoid valve | two-position three-way solenoid valve two-position five-way solenoid valve | |||||
| filter pressure reducing valve | Pressure-stabilized filtration of the air source | |||||
| stopper | Remote feedback switch model | |||||
| manual operation mechanism | can manually turn on and off models | |||||
| locator | input analog signal (4-20MA or 0-10V) to adjust the valve opening | |||||
| attention | solenoid valve limit switch can be explosion-proof | |||||
