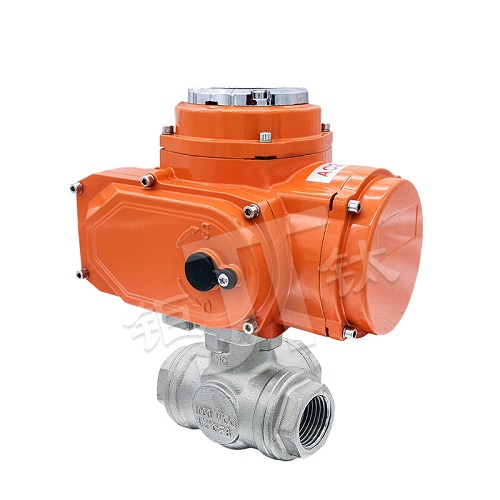

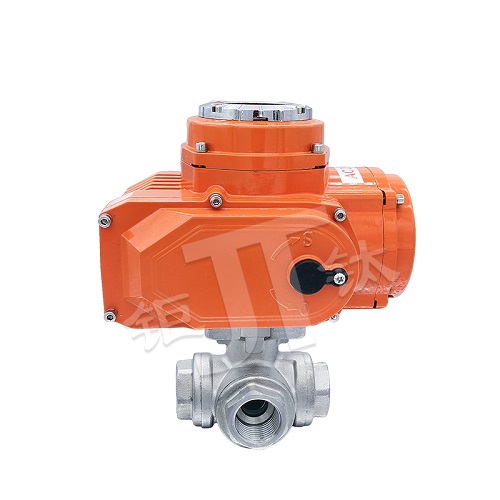

Stainless Steel Three-way Electric Ball Valve
simple structure and convenient disassembly
Small opening and closing torque, high reliability and long service life
Ball valve has high platform structure and convenient installation.
Two-way sealing, two-way pressure bearing, automatic compensation, self-cleaning function
Fireproof and antistatic structure,
It can be applied to suspensions and viscous media of fibers and tiny particles.
Small opening and closing torque, high reliability and long service life
Ball valve has high platform structure and convenient installation.
Two-way sealing, two-way pressure bearing, automatic compensation, self-cleaning function
Fireproof and antistatic structure,
It can be applied to suspensions and viscous media of fibers and tiny particles.
Product Description:
electric three-way stainless steel ball valve is a three-way switch regulating ball valve, which can reverse, divert or combine three pipeline media. It is widely used in electric power, environmental protection, water supply, steam, mechanical equipment and other industrial systems for two-position cut-off or proportional adjustment.
| technical parameters: | |||||||||||
| Product name | electric 3-way ball valve |  |
|||||||||
| Nominal Tongjing | DN08 to DN100 | ||||||||||
| nominal pressure | 16kg 25kg 40kg | ||||||||||
| body material | stainless steel 304 stainless steel 316 | ||||||||||
| sealing material | Polyethylene PTFE para-polystyrene (PPL) | ||||||||||
| medium temperature | -15 c ~ 150 c -15 c ~ 250 c | ||||||||||
| Connection mode | Clamp Internal Thread Welding | ||||||||||
| Action | switch type adjustment type | ||||||||||
| circulation mode | T-type L-type | ||||||||||
| thread form | BSPT thread G thread NPT thread | ||||||||||
| attention | Customers can customize special requirements | ||||||||||
| electric actuator: | ||||||||
| switch type | feedback signal: passive contact signal \4-20mA \resistance signal | |||||||
| adjustment type | input signal 4-20mA\0-10V\1-5V; feedback signal: 4-20mA\0-10V\1-5V | |||||||
| voltage | AC220V\380V\110V\24V, DC12V\24V, etc. Special voltages can be customized | |||||||
| explosion-proof rating | optional explosion-proof EXdIIBT4 | |||||||
