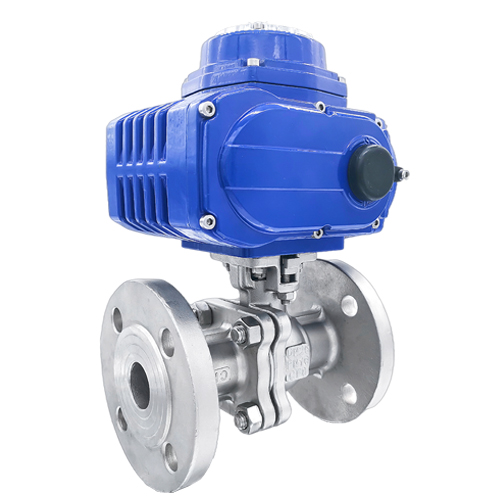

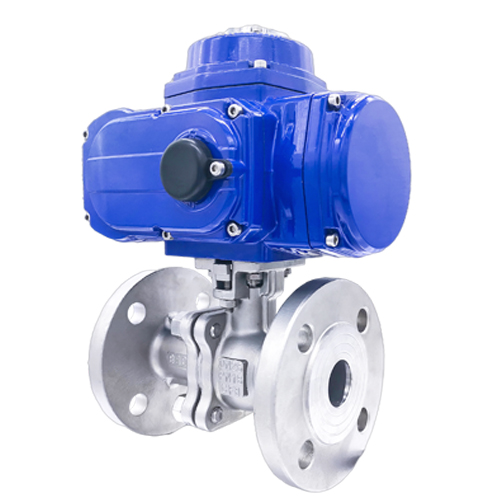

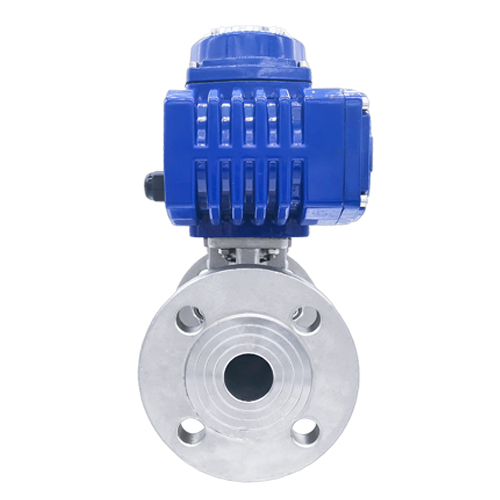

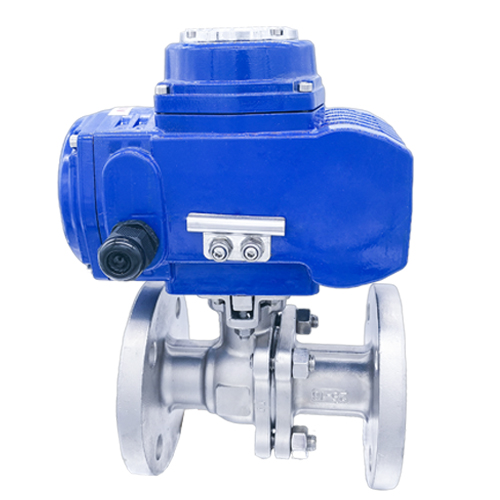

Electric Stainless Steel Flange Ball Valve
full diameter design, quick response and good sealing performance
Small opening and closing torque, high reliability and long service life
Ball valve has high platform structure, ISO5211 connection standard and convenient installation.
Two-way sealing, two-way pressure bearing, automatic compensation, self-cleaning function
It can be applied to suspensions and viscous media of fibers and tiny particles.
Small opening and closing torque, high reliability and long service life
Ball valve has high platform structure, ISO5211 connection standard and convenient installation.
Two-way sealing, two-way pressure bearing, automatic compensation, self-cleaning function
It can be applied to suspensions and viscous media of fibers and tiny particles.
Product Description:
electric stainless steel flanged ball valve is a 90-degree rotating ball valve with excellent sealing performance, large flow rate, small flow resistance coefficient, simple structure, convenient maintenance and long service life. In addition to controlling gas, liquid, and steam, it is also suitable for controlling water containing fibrous impurities. Widely used in petroleum and chemical industries
| technical parameters: | ||||||||||
| Product name | pneumatic 2-way flange ball valve |  |
||||||||
| Nominal Tongjing | DN15 to DN200 | |||||||||
| nominal pressure | 16kg 25kg 40kg 64kg | |||||||||
| body material | stainless steel 304 stainless steel 316 | |||||||||
| sealing material | Polyethylene PTFE para-polystyrene (PPL) | |||||||||
| medium temperature | -15 c ~ 150 c -15 c ~ 250 c | |||||||||
| Connection mode | flange | |||||||||
| Action | Double Action Single Action | |||||||||
| flange form | national standard flange, Japanese standard flange, American standard flange | |||||||||
| attention | Customers can customize special requirements | |||||||||
|
Attachment selection: |
||||||
| solenoid valve | two-position three-way solenoid valve two-position five-way solenoid valve | |||||
| filter pressure reducing valve | Pressure-stabilized filtration of the air source | |||||
| stopper | Remote feedback switch model | |||||
| manual operation mechanism | can manually turn on and off models | |||||
| locator | input analog signal (4-20MA or 0-10V) to adjust the valve opening | |||||
| attention | solenoid valve limit switch can be explosion-proof | |||||
