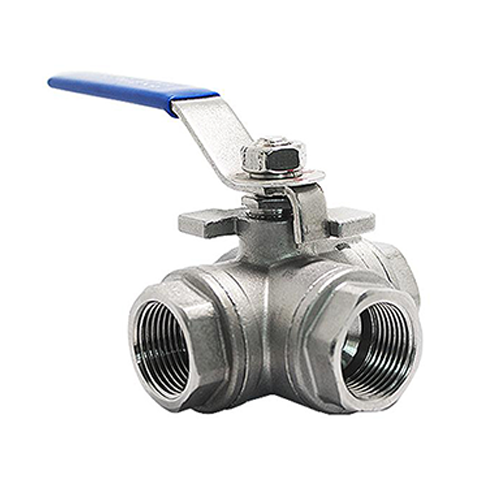

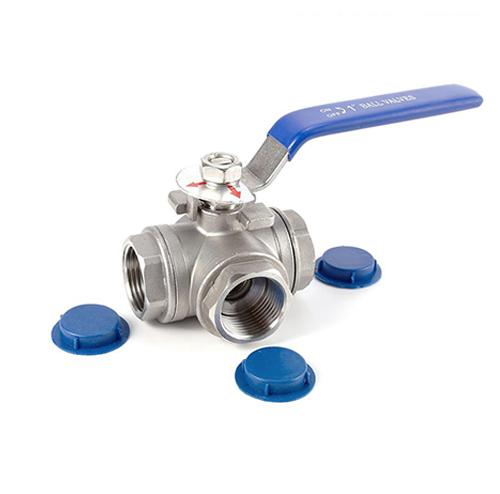

316 Stainless Steel 3 Way Ball Valves with locking handle
3 way ball valve is a 3 port valve which enable fluids flow to alternative path of hydraulic system. It allow fluid to enter or exit the valve for more than one port.3 way ball valve is available in stainless steel material and able to withstand 1000 PSI working pressure. The available ports are L-Port or T-Port. Connection of ball valve are in threaded end: BSPP or NPT.
2 Way 3pc Socket Weld Ball Valve Features:
- Full bore ball valve with locking device
- ISO5211 mounting for electric actuator and pneumatic actuator
Technical Parameters:
- Design: 3 Way / Standard Bore / L-Port / T-Port
- Size: 1/4” – 4” (DN8-100)
- Working Pressure: 1000 PSI
- Material: SS316
- Threaded End: BSPP, NPT
- Applicable Medium: General water, oil & gas applications
- Temperature Range: -29°C to 150°C
- Brand: Addison Fluids
