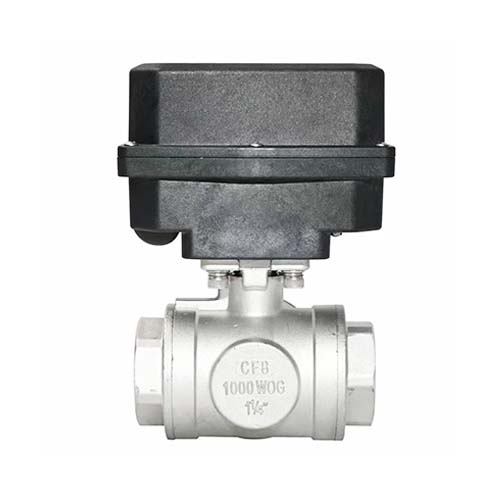

3 Way Stainless Steel Electric Ball Valve
3 Way Motorized Ball Valve with brass and stainless steel material, gray and black color. Working voltage: AC110V~230V, DC9~24V, size range from 1/2”~2”; Zero leakage and good sealing performance. User friendly ON/OFF timer control. OEM branding available. It has been successfully applied in many industrial fields, such as air conditioning system, fire fighting system, water treatment system, pipeline purging, analytical instruments, flue gas sampling and other industries
3-Way Electric Water Ball Valve
- Low operating current. Battery can act as power source
- All-copper gear design, high accuracy output torque, especially for multi-channel scaling system
- As a diverter valve to control the fluid flow. Widly used in HVAC, Solar Equipment, Water Filter, etc.
- A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing
- Good sealing performance. IP67 protection class
|
Body Material |
Brass, ss304, ss316(optional) |
Temp. of Media |
2°C to 90°C |
|
Valve Ball |
PVC, UPVC, Brass, Stainless Steel(Optional) |
Certification |
ISO 9001, CE, TUV, SGS |
|
Sealing Material |
EPDM |
Indicator |
Yes |
|
Keeping Valve Open Time |
0H:0M:OS-99H:59M:59S |
Manual override |
NO |
|
Actuator material |
Engineering Plastics |
Ambient temperature |
-15°C to 50°C |
