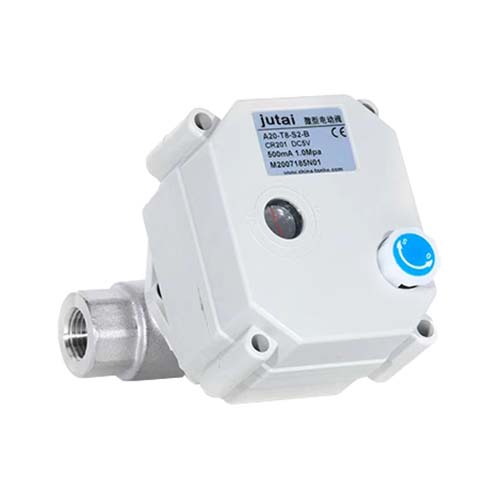

Precision and small stainless steel electric ball valve
The interface specifications can be NPT or national standard options
The indicator adopts a circular arrow mark to accurately indicate the valve switch status
The valve ball diameter is consistent with the valve cover diameter to ensure maximum flow capacity
Compact and suitable for small devices
The indicator adopts a circular arrow mark to accurately indicate the valve switch status
The valve ball diameter is consistent with the valve cover diameter to ensure maximum flow capacity
Compact and suitable for small devices
Product Description:
Small Motorized Ball Valve 2 Way
- Simple structure, reliable performance, widely replace all kinds of small caliber solenoid valve products
- With self-cleaning function, effectively ensure the pipeline smooth
- The flow channel is simple. Compared with the S-shaped flow channel of solenoid valve, it has small flow resistance and no jamming
- Good sealing performance. IP67 protection class
- Leakage: Zero leakage, Return difference: ±2.5%
|
Body Material |
Brass, ss304, ss316(optional) |
Temp. of Media |
2°C to 90°C |
|
Valve Ball |
Stainless Steel |
Certification |
ISO 9001, CE, TUV, SGS |
|
Sealing Material |
FKM |
Indicator |
Yes |
|
Keeping Valve Open Time |
0H:0M:OS-99H:59M:59S |
Manual override |
NO |
|
Actuator material |
Engineering Plastics |
Ambient temperature |
-15°C to 50°C |
|
Gasket |
PTFE |
Protection class |
IP67 |
